TRENDnet TI-G50 5-poorts Industriële Gigabit DIN-Rail Switch, 10Gbps

Merken: TRENDnet
Artikelnr #:TI-G50 Model #: TI-G50  Naam: TRENDnet TI-G50 5-Port Hardened Industrial Gigabit DIN-Rail Switch, 10Gbps
  • ETHERNET PORT INTERFACE: 5 x Gigabit Ethernet ports
  • SWITCHING CAPACITY: The hardened industrial gigabit switch and five gigabit ports provide a 10 Gbps switching capacity.
  • DIN-RAIL & WALL MOUNT KIT: This 5-Port gigabit Ethernet IP30 rated network metal switch comes equipped with included DIN-rail and wall mount hardware.
TRENDnet TI-G50 5-Port Hardened Industrial Gigabit DIN-Rail Switch, 10Gbps

Productoverzicht

Algemeen Informatie

  • 5 x Gigabit Ethernet-poorten
  • 10 Gbps schakelcapaciteit
  • Geharde metalen IP30-schakelaar
  • Inclusief DIN-rail en muurbevestigingen
  • Extreem -40 tot 75 ºC (-40 tot 167 ºF) bedrijfstemperatuurbereik
  • Dual redundante voedingsingangen met bescherming tegen overbelasting
  • Voeding apart verkrijgbaar (model TI-M6024) Geschat voor schok (IEC 60068-2-27), vrije val (IEC 60068-2-32) en trillingen (IEC 60068-2-6)
    • Main Features
    • ETHERNET PORT INTERFACE: 5 x Gigabit Ethernet ports
    • SWITCHING CAPACITY: The hardened industrial gigabit switch and five gigabit ports provide a 10 Gbps switching capacity.
    • DIN-RAIL & WALL MOUNT KIT: This 5-Port gigabit Ethernet IP30 rated network metal switch comes equipped with included DIN-rail and wall mount hardware.

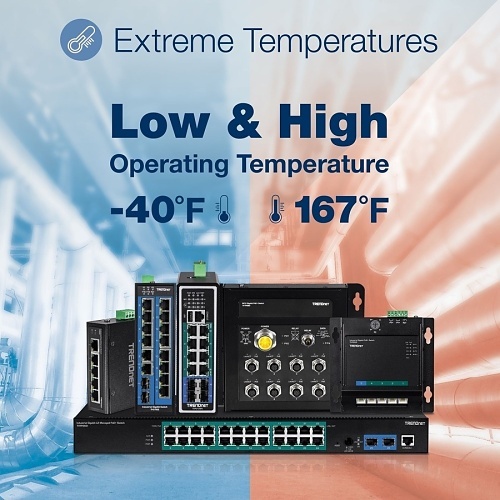

    • EXTREME TEMPERATURE SWITCH: The hardened IP30 rated gigabit switch is rated for extreme temperatures with an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)

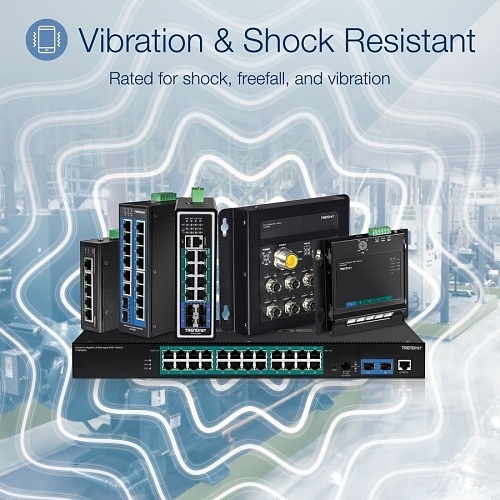

    • ELECTRO MAGNETIC COMPLIANT & SHOCK & VIBRATION RESISTANT: Industrial DIN-rail switch complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards and is rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6).
    • REDUNDANT POWER: The 5 port switch has dual redundant power inputs with overload current protection (power supply sold separately: model TI-M6024)
    • TRENDnet LIFETIME PROTECTION: All metal TRENDnet switches are backed by our lifetime TRENDnet Manufacturer Warranty
    Informatie
    Categorie : Hubs, Routers & Switches, Data Comm & Netwerken, Producten, Netwerk Switches

    Specificaties

    Algemene Informatie
    ADI artikel nummer
    TI-G50
    Artikelcode fabrikant
    TI-G50
    Fabrikant
    TRENDnet
    Merk
    TRENDnet
    Productmodel
    TI-G50
    Productnaam
    5-Port Hardened Industrial Gigabit DIN-Rail Switch
    Producttype
    Ethernetswitch
    Weight (Approximate) (g)
    168
    Technische Informatie
    Ondersteund mediatype
    Twisted-pair
    Energie
    Redundante stroomvoorziening ondersteund
    Ja
    Stroombron
    Stroomvoorziening
    Interfaces/Poorten
    Gegevens poort/uitbreidingssleuf
    5 x Gigabit Ethernet Network
    Stack-poort
    Nee
    Totaal aantal netwerkpoorten
    5
    Uplink-poort
    Nee
    Interfaces/Ports
    Modulair
    Nee
    Management & Protocollen
    Beheer mogelijk
    Nee
    Media & Performance
    Netwerktechnologie
    1000Base-LX
    Netwerk & Communicatie
    Maximaal aantal lagen
    3
    Network & Communication
    Ethernet technologie
    SFP
    Physical Characteristics
    Vormgeving
    Op tafel monteerbaar, Railbevestiging
    Uiterlijke kenmerken
    Breedte
    82 mm
    Depth (mm)
    31
    Diepte
    31 mm
    Gewicht (bij benadering)
    168 g
    Height (mm)
    37.084
    Hoogte
    37,1 mm
    Width (mm)
    82
