Algemene Informatie

ADI artikel nummer

TI-BG62I

Artikelcode fabrikant

TI-BG62I

Fabrikant

TRENDnet

gewicht

956 g

Merk

TRENDnet

Productlijn

Industrieel

Productmodel

TI-BG62i

Productnaam

6-Port Industrial Gigabit L2+ Managed PoE++ DIN-Rail Switch

Producttype

Ethernetswitch

Technische Informatie

Ondersteund mediatype

Twisted-pair

Stroomverbruik

20W

Certificaten

CE-markering

Compliant

TAA Compliant

Ja

Energie

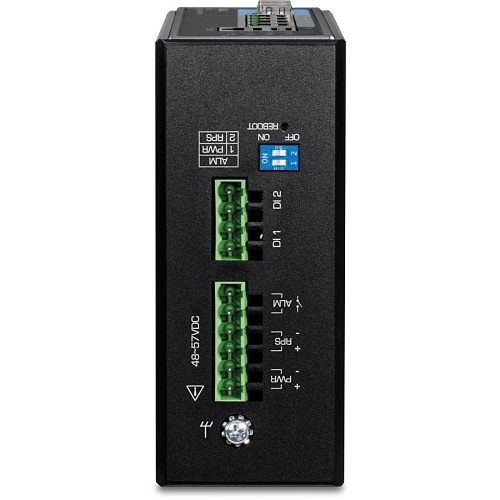

Ingangsspanning

48V DC, 57V DC

Plug/Connectortype

Terminal-block

PoE (RJ-45) poort

Ja

PoE-budget

360W

Redundante stroomvoorziening

Ja

Stroombron

Stroomvoorziening

Garantie

Beperkte garantie

Lifetime Warranty

I/O-uitbreidingen

Aantal SFP slots

2

Aantal SFP+ slots

2

Aantal Total Expansion slots

2

Type uitbreidingsslot

SFP

Interfaces/Poorten

Modulair

Ja

Netwerk (RJ-45)

Ja

Totaal aantal netwerkpoorten

6

Management & Protocollen

Beheer mogelijk

Ja

Media & Performance

Netwerktechnologie

1000Base-FX, 1000Base-T

Netwerk & Communicatie

Ethernet technologie

SFP

Maximaal aantal lagen

3

Netwerkstandaarden

IEEE 802.1ab, IEEE 802.1ax, IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Uiterlijke kenmerken

Breedte

170 mm

Diepte

118 mm

Hoogte

50 mm

Kleur

Zwart

Materiaal

Metaal

Vormgeving

Afsluiting, DIN Rail Mount

Overige

Inhoud verpakking

TI-BG62i
Quick Installation Guide
Removable terminal block
DIN rail mounting bracket

Kenmerken

12Gbps switching capacity, 2 x SFP slots, 360W PoE power budget, 4 x Gigabit PoE ports, 802.1p/DSCP/Queue Scheduling (SPQ/WRR) QoS support, 802.1Q/Q-in-Q VLAN and IGMP Snooping/MLD/MVR support, Alarm output triggered by power failure, Bandwidth control per port, CLI (Console/Telnet/SSH), Web (HTTP/HTTPS), SNMP v1/2c/3 management, Dual inputs provide redundant power with overload current protection, Fast PoE remembers per port PoE power draw of connected devices at booting, Hardened IP30 rated metal housing, IEEE 802.1p QoS with queue scheduling support, Includes DIN-rail mounting bracket, Operating temperature range of -40 to 75 deg C (-40 to 167 deg F), Perpetual PoE provides PoE power to connected devices at booting, PoE alive check restarts unresponsive PoE powered devices, Power supply sold separately (model: TI-S48048), Supports 1000Base-FX fiber SFP modules, Supports Ethernet Ring Protection Switching (ERPSv2), Supports LACP, STP/RSTP, VLAN and IGMP Snooping

Milieucertificering

CE, Freefall (IEC 60068-2-32), Shock (IEC 60068-2-27), Vibration (IEC 60068-2-6)

TRENDnet TI-BG62I 6-Port Industrial Gigabit L2+ Managed PoE++ DIN-Rail Switch, 2-SFP Poorten, 360W, Zwart
