Algemene Informatie

ADI artikel nummer

SRWF5U

Artikelcode fabrikant

SRWF5U

Fabrikant

Tripp Lite by Eaton

gewicht

20.4 kg

Merk

Eaton

Productlijn

SmartRack

Productmodel

SRWF5U

Productnaam

SmartRack SRWF5U Enclosure Rack Cabinet

Producttype

Rack Cabinet

Certificaten

CE-markering

Compliant

Garantie

Beperkte garantie

5-Year

Uiterlijke kenmerken

Breedte

650,24 mm

Diepte

246,38 mm

Hoogte

731,52 mm

Kleur

Zwart

Maximaal draagvermogen

68 kg

Rekhoogte

5U

Toepassing/gebruik

Back Offices, Classrooms, Network Wiring Closets, Retail Locations

Overige

Inhoud verpakking

SRWF5U SmartRack 5U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet
(12) M6 screws
(12) M6 cup washers
(12) 12-24 screws
(2) Keys
Owner’s manual

Kenmerken

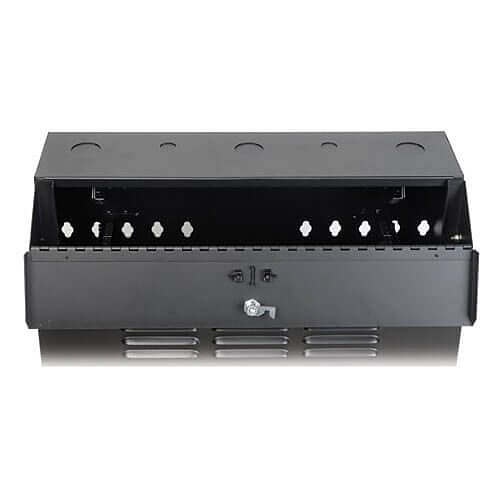

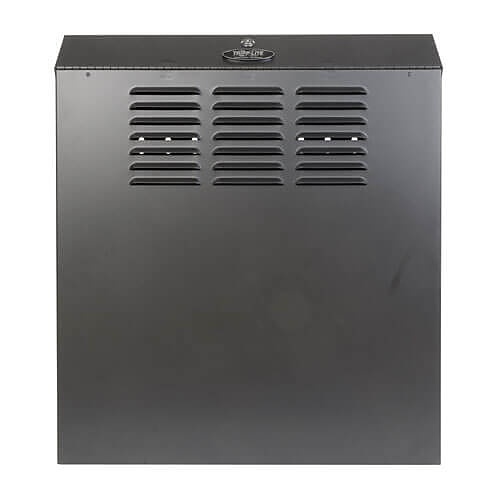

Also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep, Convenient ports with removable covers allow cable routing through top and bottom, Houses EIA-standard 19 in. rack equipment in 5U of space, Low-profile vertical-mount cabinet extends less than 10 inches from the wall while housing equipment up to 20 inches deep, including network switches and patch panels, Maximum load capacity of 150 lb (68 kgs), Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way, Ships fully assembled for quick installation, Top panel and reversible front door lock securely to help prevent damage, tampering or theft, Vented cabinet keeps equipment cool, Wall-mounting holes spaced 16 in. apart for standard wall stud placement

Land van herkomst

CN

Milieucertificering

WEEE

Milieuvriendelijk

Ja

Eaton SRWF5U SmartRack 5U Low-Profile Vertical-Mount Switch-Depth Muurgemonteerde rack-behuizing, vergrendelbare stalen kast met ventilatieopeningen, Zwart
