Algemene Informatie

ADI artikel nummer

SRWF2U

Artikelcode fabrikant

SRWF2U

Fabrikant

Tripp Lite by Eaton

gewicht

23.3 kg

Merk

Eaton

Productlijn

SmartRack

Productmodel

SRWF2U

Productnaam

SmartRack SRWF2U Rack Cabinet

Producttype

Rack Cabinet

Certificaten

CE-markering

Compliant

Garantie

Beperkte garantie

5-Year

Uiterlijke kenmerken

Breedte

650,24 mm

Diepte

114,3 mm

Hoogte

731,52 mm

Kleur

Zwart

Maximaal draagvermogen

68 kg

Rekhoogte

2U

Toepassing/gebruik

Back Offices, Classrooms, Network Wiring Closets, Retail Locations

Overige

Inhoud verpakking

SRWF2U SmartRack 2U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet
(12) M6 screws
(12) M6 cup washers
(12) 12-24 screws
(2) Keys
Owner’s manual

Kenmerken

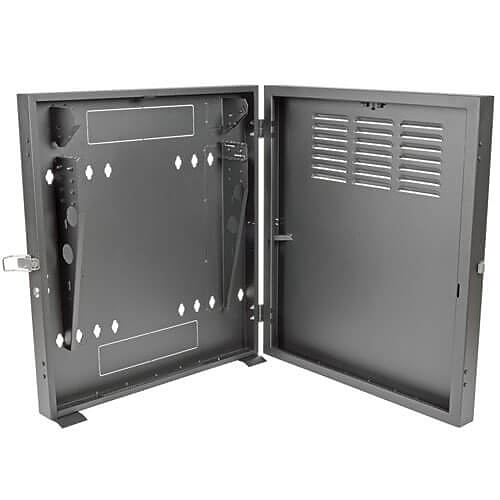

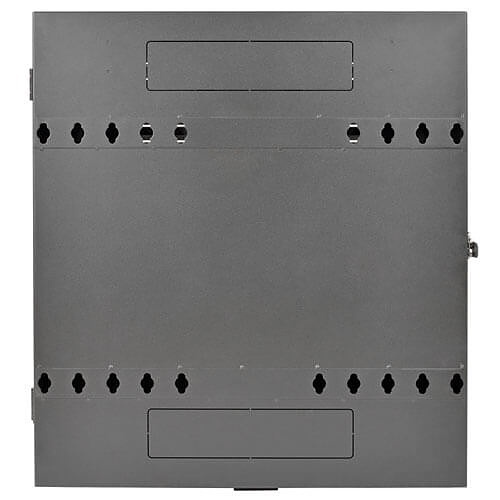

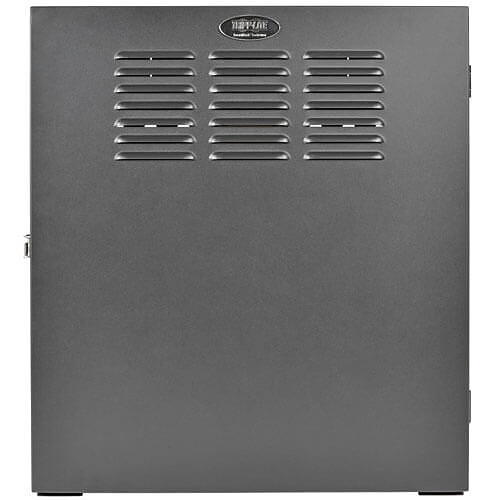

Also includes a slide-out 1U mounting bracket at the top of the enclosure for patch panels up to 2.5 in. deep, Convenient ports with removable covers allow cable routing through top and bottom, Houses EIA-standard 19 in. rack equipment in 2U of space, Low-profile vertical-mount cabinet extends less than 5 in. from the wall while housing equipment up to 20 in. deep, including network switches and patch panels, Maximum load capacity of 150 lb (68 kgs), Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way, Reversible front door locks securely to help prevent damage, tampering or theft, Ships fully assembled for quick installation, Vented cabinet keeps equipment cool, Wall-mounting holes spaced 16 in. apart for standard wall stud placement

Land van herkomst

CN

Milieucertificering

WEEE

Milieuvriendelijk

Ja

Eaton SRWF2U SmartRack 2U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rackbehuizing, vergrendelbare stalen kast met ventilatieopeningen, Zwart
