Algemene Informatie

ADI artikel nummer

SRW6UDP

Artikelcode fabrikant

SRW6UDP

Fabrikant

Tripp Lite by Eaton

gewicht

20.5 kg

Merk

Eaton

Productlijn

SmartRack

Productmodel

SRW6UDP

Productnaam

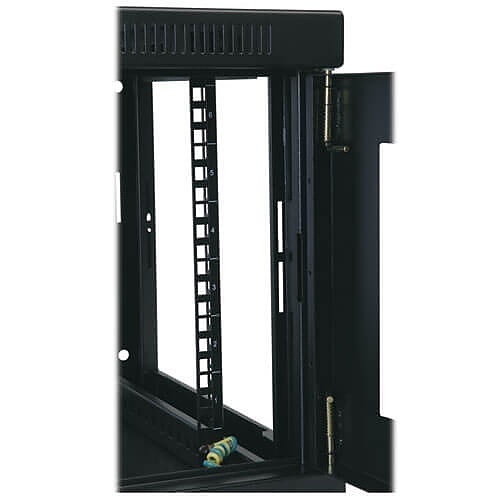

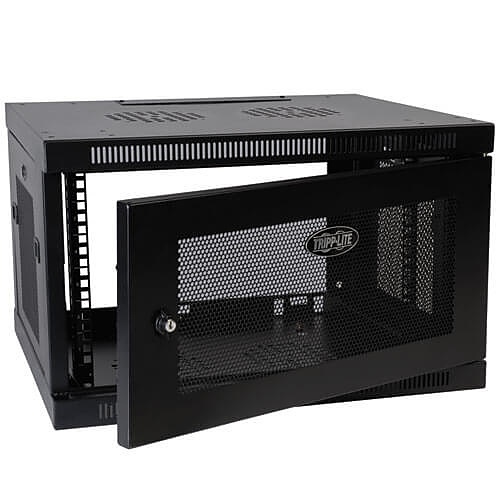

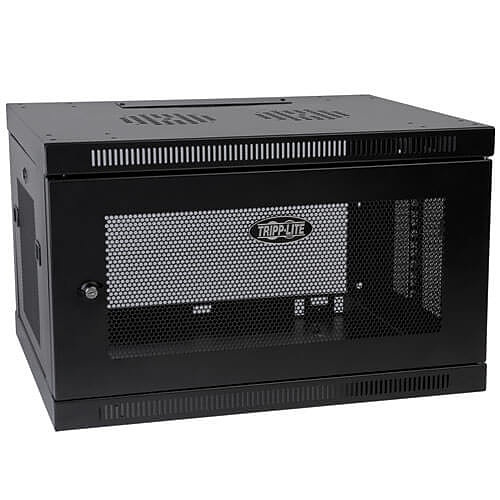

SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet

Producttype

Rack Cabinet

Certificaten

CE-markering

Compliant

Garantie

Beperkte garantie

5-Year

Uiterlijke kenmerken

Breedte

599,9 mm

Diepte

551,43 mm

Hoogte

370,07 mm

Kleur

Zwart

Maximaal draagvermogen

90.7 kg

Rekhoogte

6U

Toepassing/gebruik

Back Offices, Classrooms, Network Wiring Closets, Retail Locations

Overige

Inhoud verpakking

(3) Mounting plate screws
(2) Keys
Owner’s manual

,

SRW6UDP SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet
(12) M6 screws
(12) M6 cage nuts
(12) M6 cup washers
(12) 12-24 screws
Removable mounting plate

Kenmerken

Convenient ports with removable covers allow cable routing through top and bottom, Houses EIA-standard 19 in. rack equipment in 6U of space, Maximum load capacity of 200 pounds (90.7 kg), Mounts to wall or rolls on floor with optional SRCASTER caster kit, Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way, Rotate cabinet 180Â° before mounting to open reversible front door left or right, Ships fully assembled for quick installation, Side panels and front door lock securely to help prevent damage, tampering or theft, Vented panels allow generous airflow that keeps equipment cool, Wall-mounting holes spaced 16 in. apart for standard wall stud placement

Land van herkomst

CN

Milieucertificering

WEEE

Milieuvriendelijk

Ja

Eaton SRW6UDP SmartRack 6U Switch-Depth-Plus wandgemonteerde mini rack-behuizing, Zwart
