Algemene Informatie

ADI artikel nummer

SRW18US13

Artikelcode fabrikant

SRW18US13

Fabrikant

Tripp Lite by Eaton

gewicht

43.5 kg

Merk

Eaton

Productlijn

SmartRack

Productmodel

SRW18US13

Productnaam

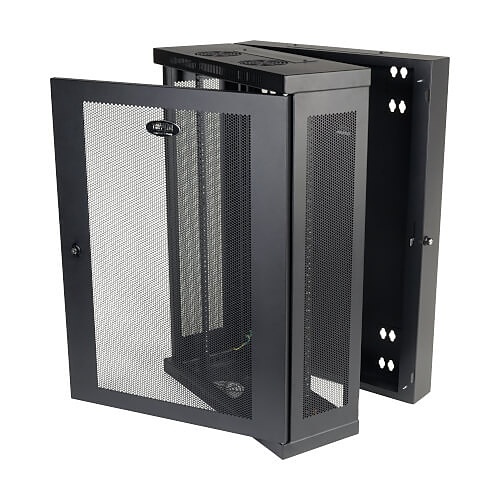

SmartRack Slim 18U Swinging Wall-Mount Rack Enclosure Cabinet

Producttype

Rack Cabinet

Certificaten

CE-markering

Compliant

Garantie

Beperkte garantie

5-Year

Uiterlijke kenmerken

Breedte

599,4 mm

Diepte

548,64 mm

Hoogte

904,24 mm

Kleur

Zwart

Maximaal draagvermogen

113.4 kg

Rekhoogte

18U

Toepassing/gebruik

Back Offices, Classrooms, Network Wiring Closets, Retail Locations

Overige

Inhoud verpakking

SRW18US SmartRack 18U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet
(42) M6 screws
(42) M6 cage nuts
(42) M6 washers
(42) 12-24 screws
(2) Keys
Owner’s manual

Kenmerken

Convenient ports with removable covers allow cable routing through top and bottom, Houses EIA-standard 19 in. rack equipment in 18U of space, Maximum load capacity of 250 pounds (113.4 kg), Mounts to wall or rolls on floor with optional SRCASTER caster kit, Perfect for network closets, retail locations, classrooms and other areas with limited floor space where you need equipment to be secure, organized and out of the way, Rotate cabinet 180Â° before mounting to open reversible doors left or right, Ships fully assembled for quick installation, Side panels and doors lock securely to help prevent damage, tampering or theft, Swings away from the wall to allow easy back-door access to equipment and cabling during installation and maintenance, Vented panels allow generous airflow that keeps equipment cool

Land van herkomst

CN

Milieucertificering

WEEE

Milieuvriendelijk

Ja

Eaton SRW18US13 SmartRack 18U wandhoge rack-behuizing met laag profiel en patchdiepte, scharnierende achterkant
