Algemene Informatie

ADI artikel nummer

SRW12US

Artikelcode fabrikant

SRW12US

Fabrikant

Tripp Lite by Eaton

gewicht

27.2 kg

Merk

Eaton

Productlijn

SmartRack

Productmodel

SRW12US

Productnaam

SRW12US Wall mount Rack Enclosure Server Cabinet

Producttype

Rack Cabinet

Certificaten

CE-markering

Compliant, Ja

Garantie

Beperkte garantie

5-Year

Uiterlijke kenmerken

Breedte

596,9 mm

Diepte

549,2 mm

Hoogte

625,4 mm

Kleur

Zwart

Maximaal draagvermogen

90.7 kg

Rekhoogte

12U

Toepassing/gebruik

Back Offices, Classrooms, Network Wiring Closets, Retail Locations

Overige

Inhoud verpakking

SRW12US SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet
(20) M6 screws
(20) M6 cage nuts
(20) M6 washers
(20) 12-24 screws
(2) Keys
Owner’s manual

Kenmerken

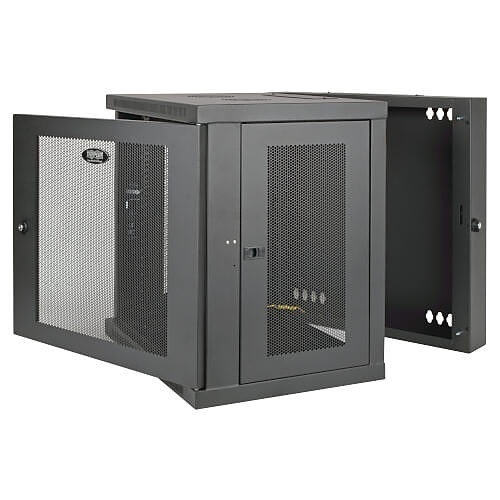

Convenient ports with removable covers allow cable routing through top and bottom, Houses EIA-standard 19 in. rack equipment in 12U of space, Maximum load capacity of 200 pounds (90.7 kg), Mounts to wall or rolls on floor with optional SRCASTER caster kit, Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way, Rotate cabinet 180Â° before mounting to open reversible doors left or right, Ships fully assembled for quick installation, Side panels and doors lock securely to help prevent damage, tampering or theft, Swings away from the wall to allow easy back-door access to equipment and cabling during installation and maintenance, Vented panels allow generous airflow that keeps equipment cool

Land van herkomst

CN

Milieucertificering

WEEE

Milieuvriendelijk

Ja

Eaton SRW12US SmartRack 12U Switch-Depth wandgemonteerde kleine rack-behuizing met scharnierende achterkant, Zwart
