Algemene Informatie

ADI artikel nummer

SRW12UDP

Artikelcode fabrikant

SRW12UDP

Fabrikant

Tripp Lite by Eaton

gewicht

26.48 kg

Merk

Eaton

Productlijn

SmartRack

Productmodel

SRW12UDP

Productnaam

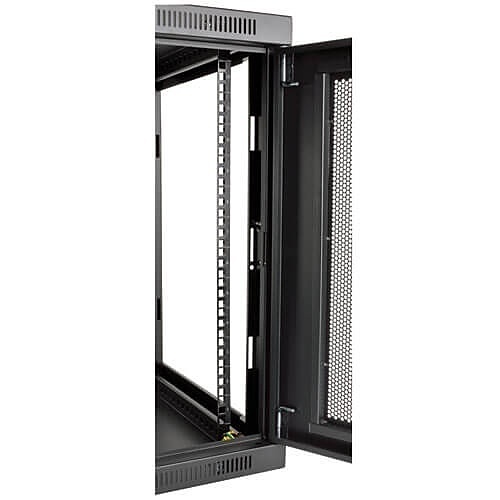

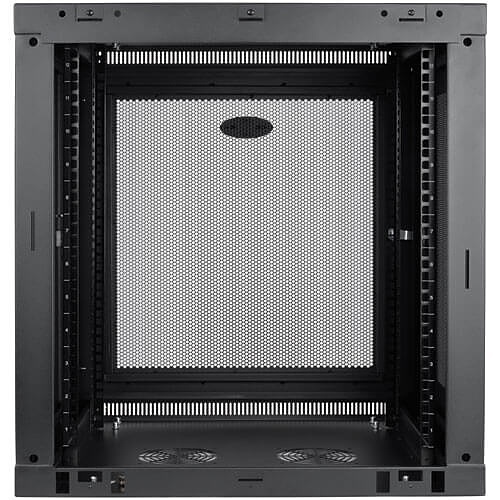

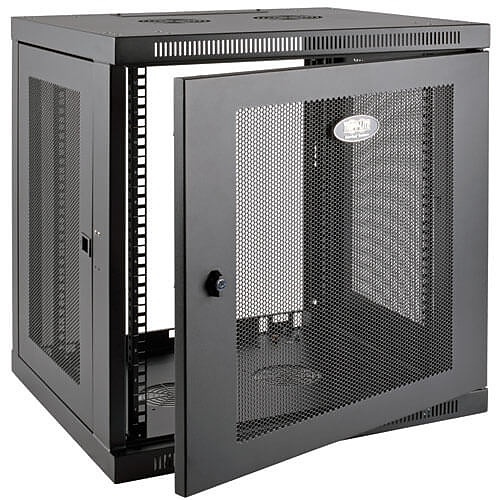

SmartRack 12U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet

Producttype

Rack Cabinet

Certificaten

CE-markering

Compliant

Garantie

Beperkte garantie

5-Year

Uiterlijke kenmerken

Breedte

599,9 mm

Diepte

552,4 mm

Hoogte

637,03 mm

Kleur

Zwart

Maximaal draagvermogen

90.7 kg

Rekhoogte

12U

Toepassing/gebruik

Back Offices, Classrooms, Network Wiring Closets, Retail Locations

Overige

Inhoud verpakking

SRW12UDP SmartRack 12U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet
(20) M6 screws
(20) M6 cage nuts
(20) M6 washers
(20) 12-24 screws
(2) Keys
Owner’s manual

Kenmerken

Convenient ports with removable covers allow cable routing through top and bottom, Houses EIA-standard 19 in. rack equipment in 12U of space, Maximum load capacity of 200 pounds (90.7 kg), Mounts to wall or rolls on floor with optional SRCASTER caster kit, Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way, Rotate cabinet 180Â° before mounting to open reversible front door left or right, Ships fully assembled for quick installation, Side panels and front door lock securely, Vented panels allow generous airflow that keeps equipment cool, Wall-mounting holes spaced 16 in. apart to accommodate standard wall stud placement

Land van herkomst

CN

Milieucertificering

WEEE

Milieuvriendelijk

Ja

Eaton SRW12UDP SmartRack 12U Switch-Depth-Plus wandgemonteerde kleine rack-behuizing, Zwart
