Algemene Informatie

ADI artikel nummer

SRW12U13G

Artikelcode fabrikant

SRW12U13G

Fabrikant

Tripp Lite by Eaton

gewicht

17.2 kg

Merk

Eaton

Productlijn

SmartRack

Productmodel

SRW12U13G

Productnaam

SmartRack SRW12U13G Rack Cabinet

Producttype

Rack Cabinet

Certificaten

CE-markering

Compliant

Garantie

Beperkte garantie

5-Year

Uiterlijke kenmerken

Breedte

599,9 mm

Diepte

330,2 mm

Hoogte

637,03 mm

Kleur

Zwart

Maximaal draagvermogen

90.7 kg

Rekhoogte

12U

Toepassing/gebruik

Back Offices, Classrooms, Network Wiring Closets, Retail Locations

Overige

Inhoud verpakking

(3) Mounting plate screws
(2) Keys
Owner’s manual

,

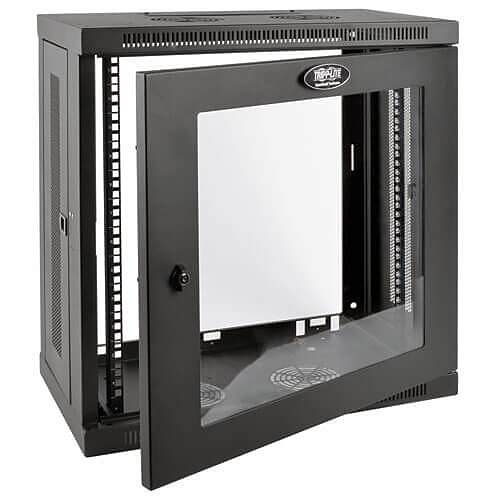

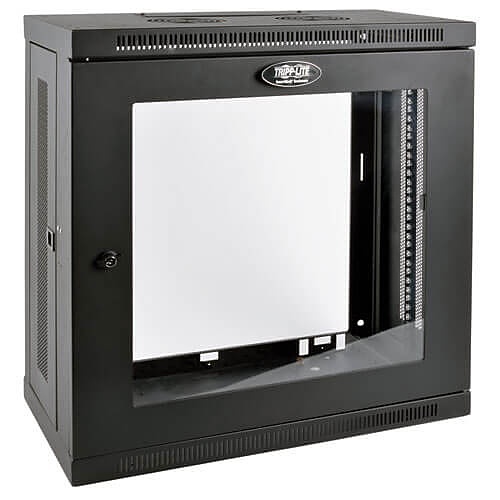

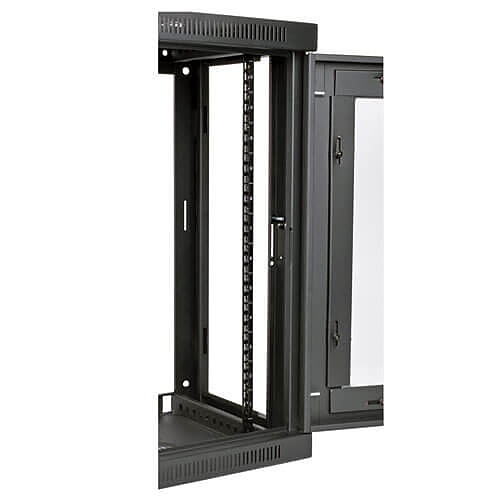

SRW12U13G SmartRack 12U Very Low-Profile Patch-Depth Wall-Mount Rack Enclosure Cabinet
(20) M6 screws
(20) M6 cage nuts
(20) M6 cup washers
(20) 12-24 screws
Removable mounting plate

Kenmerken

Convenient ports with removable covers allow cable routing through top and bottom, Houses shallow 19 in. rack equipment, including network switches and patch panels, in 12U of space, Maximum load capacity of 200 pounds (90.7 kg), Mounts to wall or rolls on floor with optional SRCASTER caster kit, Perfect for network wiring closets, retail locations, back offices, classrooms and other areas with limited floor space where you need equipment to be secure, organized and out of the way, Rotate cabinet 180Â° before mounting to open reversible front door left or right, Ships fully assembled for quick installation, Side panels and front door lock securely, Vented panels allow generous airflow that keeps equipment cool, Wall-mounting holes spaced 16 in. apart to accommodate standard wall stud placement

Land van herkomst

CN

Milieucertificering

UL, WEEE

Milieuvriendelijk

Ja

Eaton SRW12U13G SmartRack 12U zeer laag profiel Patch-Depth wandgemonteerde kleine rack-behuizingt, transparant acrylvenster, Zwart
