Algemene Informatie

ADI artikel nummer

PDBW82041PB360E4S2

Artikelcode fabrikant

DH-IPC-PDBW82041P-B360-E4-2812-S2

Fabrikant

Zhejiang Dahua Technology Co., Ltd.

gewicht

2.75 kg

Merk

Dahua Technology

Productlijn

Panoramic

Productmodel

DH-IPC-PDBW82041P-B360-E4-2812-S2

Productnaam

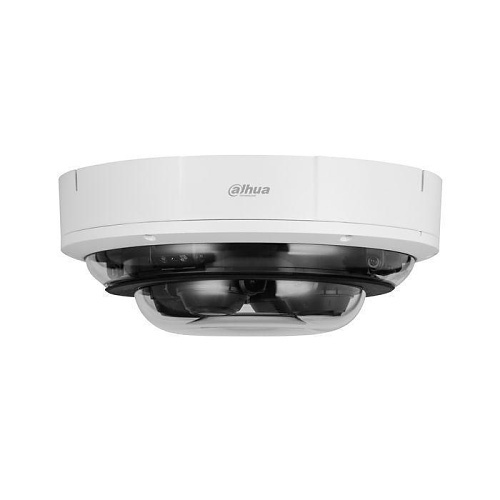

Dahua 4 x 5 MP 4-Directional Panoramic Dome Wizmind Network Camera

Productserie

Panoramic Series

Producttype

Bewegingssensor

Technische Informatie

Effectieve cameraresolutie

5MP

Maximale beeldsnelheid

30 fps

Night Vision

Ja

Camera

Afstand van nachtvisie

30 m

Certificaten

CE-markering

Out of Scope

IP-beschermingsklasse

IP67

Garantie

Beperkte garantie

3-Year

Lens

Brandpuntlengte

2.8-12 mm

Productinformatie

Diameter

286,1 mm

Uiterlijke kenmerken

Hoogte

111,3 mm

Kleur

Wit, Zwart

Overige

Binnen/buiten

Buiten

Kenmerken

12 VDC/PoE power supply 12 VDC power output, and max. current 165mA easy for installation., 4-channel stream output, and each channel can output max. 5 MP (2592 x 1944) at 25/30 fps., Alarm 3 in, 2 out audio 1 in, 1 out RS-485 supports max. 256 G Micro SD card, Built-in IR LED illuminator, and the max. illumination distance is 30 m., FlexStream The 4 channels of images can be viewed in a defined channel with 1 channel stream. That is the multiple images can be displayed in 1 channel., Four 5-MP 1/2.7" CMOS image sensor, low illuminance, high image definition, Intelligent detection - Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), abandoned object, missing object, loitering detection, people gathering, and parking detection, ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments., The intelligent functions of 4 channels can be enabled at the same time, including face detection, IVS, and people counting, Web5.0 interface design, which is friendly to users, and easy for operation.

Dahua DH-IPC-PDBW82041P-B360-E4-2812-S2 5MP WizMind Multi-Sensor No-Splicing Panoramic Dome IP Camera's
