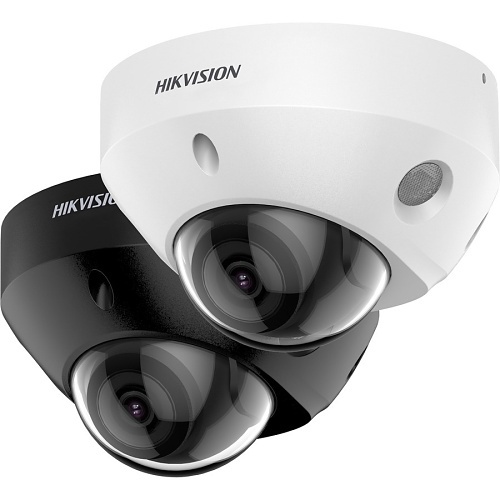

Hikvision DS-2CD2583G2-IS Pro Series AcuSense 8MP Outdoor Fixed Mini Dome IR IP Camera, 2.8mm Fixed Lens, Black
Merken: Hikvision
Artikelnr #:311318147
Model #: DS-2CD2586G2-IS(2.8MM)(C)(BLACK)
Naam: Hikvision DS-2CD2583G2-IS Pro Series AcuSense 8MP Outdoor Fixed Mini Dome IR IP Camera, 2.8mm Fixed Lens, Black
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Focusing on human and vehicle classification based on deep learning
Productoverzicht
Algemeen Informatie
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Main Features
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Focusing on human and vehicle classification based on deep learning
- Clear imaging against strong back light due to 120 dB WDR technology
- Efficient H.265+ compression technology
- -S: audio and alarm interface available
- Water and dust resistant (IP67) and vandal resistant (IK08)
Informatie
Categorie : Video, IP Camera's, Dome Camera's, Producten
Specificaties
Algemene Informatie
ADI artikel nummer
311318147
Artikelcode fabrikant
DS-2CD2586G2-IS(2.8mm)(C)(BLACK)
Fabrikant
Hikvision
Merk
Hikvision
Productmodel
DS-2CD2586G2-IS
Productnaam
AcuSense Pro DS-2CD2586G2-IS Netwerkcamera
Productserie
AcuSense
Producttype
Network Camera
Weight (Approximate) (g)
400
Technical Information
Gezichtsveld
horizontal FOV 110.0°, vertical FOV 56.7°, diagonal FOV 134.1°
Lenstype
Vast
Maximale beeldsnelheid
60 fps
Maximale Opening
f/1,6
Maximum Focal Length (mm)
2.8
Technische Informatie
Effectieve cameraresolutie
8 Megapixel
HD-recording
Ja
Nachtzichttype
Infrarood
Night Vision
Ja
Type lensmontage
M12-bajonet
Videoformaten
H.264 (MP), H.264 BP, H.264 HP, H.264+, H.265 (MP), MJPEG, Motion JPEG, PAL, Smart H.265+
Belichting
Kortste sluitertijd
1/100000 Second
Langste sluitertijd
1/3 Second
Camera
Afstand van nachtvisie
49,99 m
Beeldsensortype
CMOS
Connectiviteitstechnologie
Bedraad
Night Vision Distance (mm)
83000
Display & Graphics
Effective Camera Resolution (Pixel)
8000000
Maximale videoresolutie
3840 x 2160
Energie
Ingangsspanning
12 V DC
Interfaces/Poorten
Netwerk (RJ-45)
Ja
Lens
Lens meegeleverd
Ja
Maximale brandpuntafstand
2,80 mm
Netwerk & Communicatie
Beheer op afstand
Ja
Omgeving
Bedrijfsvochtigheid
95%
Maximale gebruikstemperatuur
60 °C
Maximum Operating Temperature (°F)
200
Minimale gebruikstemperatuur
-30 °C
Minimum Operating Temperature (°F)
-22
Opslag
Opslagtype
Geheugenkaart
Physical Characteristics
Duurzaamheid
Schokbestendig, Stofbestendig, Waterbestendig
Vormgeving
Minidome
Product Information
Diameter
113,6 mm
Productinformatie
Montage
Muurbevestiging, Plafondsteun, Plafondsteun DS-1299ZJ, Vertical Mount, Verticale bevestiging, Wandsteun
Storage
Opnameformaten
4K
Uiterlijke kenmerken
Color
Zwart
Diameter (mm)
113.6
Gewicht (bij benadering)
400 g
Miscellaneous
Kenmerken
3D Digital Noise Reduction, Back Light Compensation (BLC), Built-in Microphone, Gain Control, Highlight Compensation (HLC), Password Protection, Sabotagealarm, SD Card Local Storage, Wachtwoordbescherming, White Balance
Overige
Impactbeschermingsklasse
IK09, IK10
IP-beschermingsklasse
IP69
Milieucertificering
REACH, RoHS, WEEE
Milieuvriendelijk
Ja
