Name: AXIS M3077-PLVE M30 Series, WDR IP66 6MP 1.56mm Fixed Lens IP Dome Camera, White
Brand: AXIS Communications
SKU: 02018-001

AXIS M3077-PLVE M30 serie, WDR IP66 6MP 1.56mm vaste lens IP dome camera, wit

Merken: AXIS Communications

Artikelnr #:02018-001 Model #: 02018-001 Naam: AXIS M3077-PLVE M30 Series, WDR IP66 6MP 1.56mm Fixed Lens IP Dome Camera, White

Complete 180° and 360° overview
Lightfinder, Forensic WDR and Optimized IR
Digital PTZ and dewarped views

Productoverzicht

Algemeen Informatie

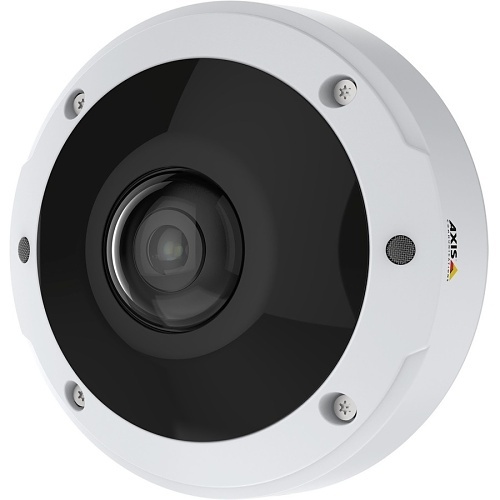

AXIS M3077-PLVE
With its 6 MP sensor, AXIS M3077-PLVE offers excellent image quality and a complete 180° or 360° ove rview
indoors or out, around the clock.
It features two built-in microphones allowing for audio surveillance and detection.
This compact mini dome offers dewarped views such as panorama, quad, corner, and corridor views directly from the camera.
It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness.
Axis OptimizedIR for surveillance in pitch darkness. Furthermore, enhanced security functionali ty prevents unauthorized access and safeguards your system.

Main Features

Complete 180° and 360° overview
Lightfinder, Forensic WDR and Optimized IR
Digital PTZ and dewarped views
Built-in microphones
Enhanced security features

Informatie

Categorie : IP Camera's, Producten, Panoramische Camera's, Video

Barcode : 7331021070813

Specificaties

Algemene Informatie

ADI artikel nummer

02018-001

Artikelcode fabrikant

02018-001

Fabrikant

Axis Communications

Merk

AXIS

Productmodel

M3077

Productnaam

M3077-PLVE Netwerkcamera

Productserie

M30

Producttype

Network Camera

Weight (Approximate) (g)

700

Technical Information

Gezichtsveld

Horizontal field of view: 183° Vertical field of view: 183°

Lenstype

Vast

Maximale beeldsnelheid

30 fps

Maximale Opening

f/2

Maximum Focal Length (mm)

1.56

Technische Informatie

Effectieve cameraresolutie

6 Megapixel

HD-recording

Videoformaten

H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), MJPEG, PAL, Smart H.265+

Beeldscherm

Color Supported

Color

Belichting

Kortste sluitertijd

1/16000 Second

Langste sluitertijd

1 Second

Camera

Afstand van nachtvisie

20 m

Beeldsensortype

RGB CMOS

Connectiviteitstechnologie

Bedraad en draadloos

Night Vision Distance (mm)

20000

Display & Graphics

Effective Camera Resolution (Pixel)

6000000

Maximale videoresolutie

2560 x 1920

Minimum Illumination (lux)

Exposure

Minimale belichting

0 lux

Interfaces/Poorten

Netwerk (RJ-45)

Lens

Lens meegeleverd

Maximale brandpuntafstand

1,56 mm

Netwerk & Communicatie

Beheer op afstand

Omgeving

Bedrijfsvochtigheid

100%

Maximale gebruikstemperatuur

60 °C

Maximum Operating Temperature (°F)

131

Minimale gebruikstemperatuur

-40 °C

Minimum Operating Temperature (°F)

-40

Physical Characteristics

Vormgeving

Dome

Product Information

Diameter

149 mm

Productinformatie

Montage

Lighting Track Mount, Muurbevestiging, Parapet Mount, Plafondmontage, Plafondsteun, Plafondsteun DS-1299ZJ, Wandsteun

Storage

Opnameformaten

Full HD

Uiterlijke kenmerken

Color

Wit

Diameter (mm)

149

Gewicht (bij benadering)

700 g

Height (mm)

Hoogte

66 mm

Video

Maximum Frame Rate (fps)

Miscellaneous

Binnen/buiten

Buitenshuis

Kenmerken

Audio Detection, Auto Gain Control, Automatic White Balance, Built-in IR LED, Built-in Microphone, Multi-view Stream, Noise Reduction, Privacy Masking, PTZ, Removable IR Cut-off Filter, Sabotagealarm, SD Card Local Storage, Tampering Alarm, Videobeheersysteem, Wachtwoordbescherming, Witbalans

Overige

Impactbeschermingsklasse

IK09

IP-beschermingsklasse

IP67
